Pass Box Interlocking System:

Description :

In the process of material transfer from unclassified area to classified area pass boxes are used. The doors are interlocked such a way that doors cannot be open at the same time, due to which pressure losses and bacterial contamination doesn't takes place throughout the material transferring process. The prevention of simultaneous access of doors is been achieved by our Pass Box controller by ensuring that when one door for a Pass box is open then other doors closed.

Features:

  • Advanced micro controller based 2Door or 3Door STATIC/DYNAMIC Passbox interlocking system.
  • Status indications with High intensity RED color BAR LED's.
  • Door Status indications like “GO”, ”WAIT”, “CLOSE DOOR”, “DOOR OPEN” messages or “LOCKED”, “RELEASED” for every pushbutton.
  • Buzzer output for door is kept open more than pre-programmed time from 1 to 30 min.
  • Timer value can set by using 3keys keypad.
  • Password protection for Timer value setting.
  • Timer value can set maximum of 999 sec/mins.
  • When Door 1 is opened the display on the Door 2 and Door 3 will indicate “WAIT” and at the Door 1 the display will indicate “DOOR OPEN”.
  • When any of the Door is kept open beyond a particular time say 2 min, buzzer will be blown and the display at the doors will indicate “CLOSE DOOR”.
  • UV Lamp controlling.
  • Blower fan controlling.
  • CF Lamp controlling.
  • All Doors are provided with Electromagnetic locks/Electric Strikers.

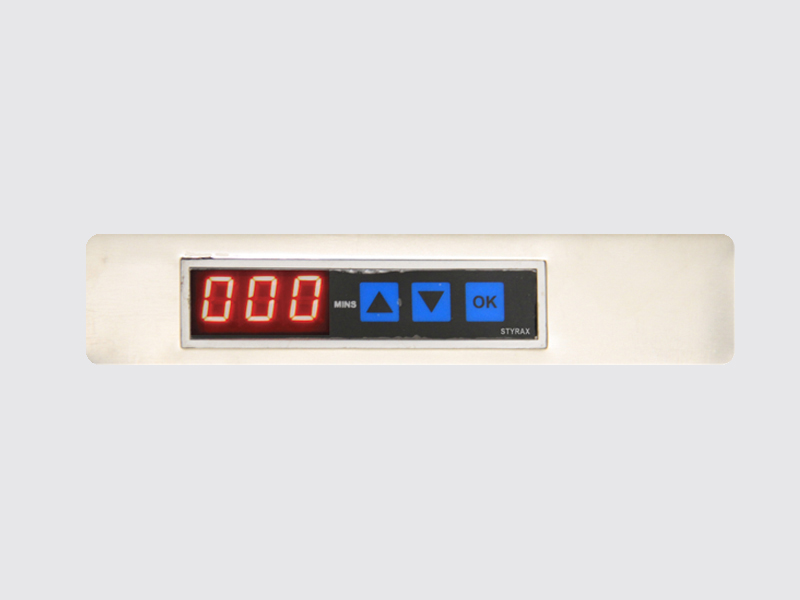

  • 3 digit 0.39” 7-Segment RED LED to display the timer value.
  • Soft-touch membrane keypad provided to program timer values.

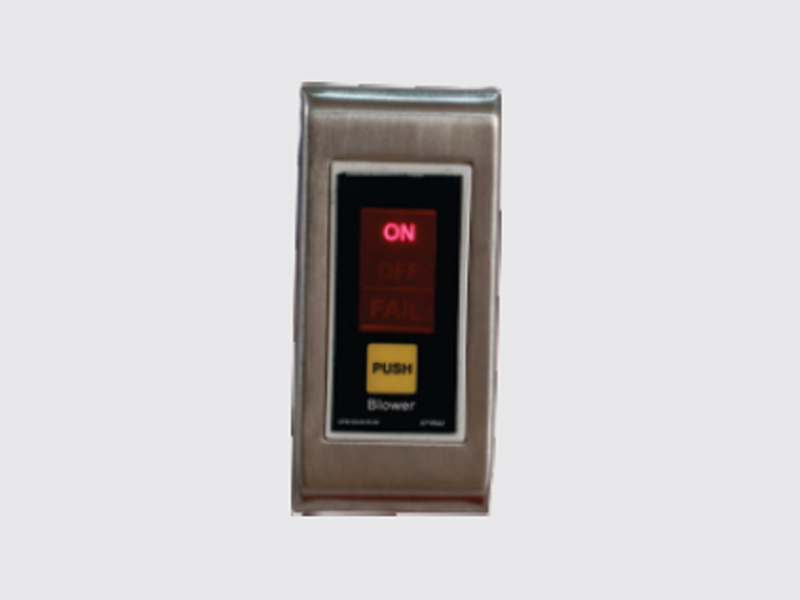

  • 3mm Diffused red LED for Blower failure Indications.
  • Soft-touch membrane keypad provided to program timer value.

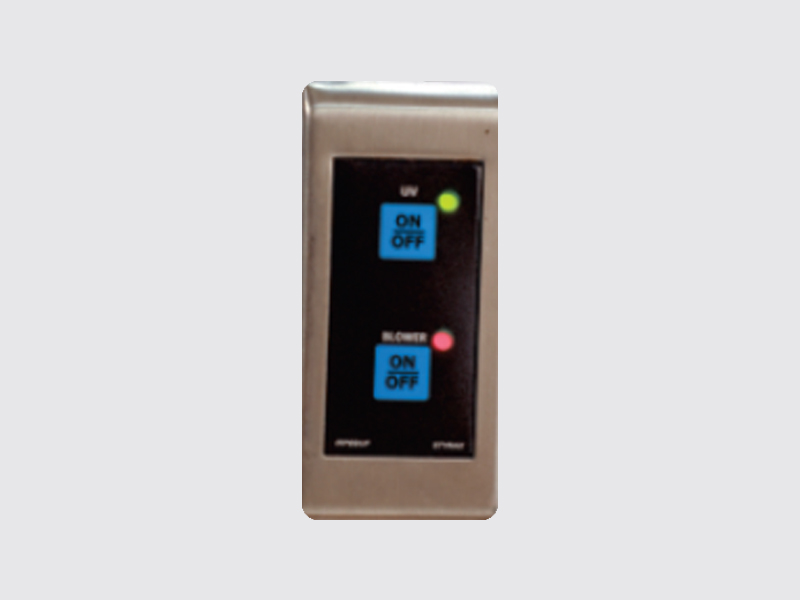

  • Soft-touch membrane keypad provided to control LAF/BUF controls.

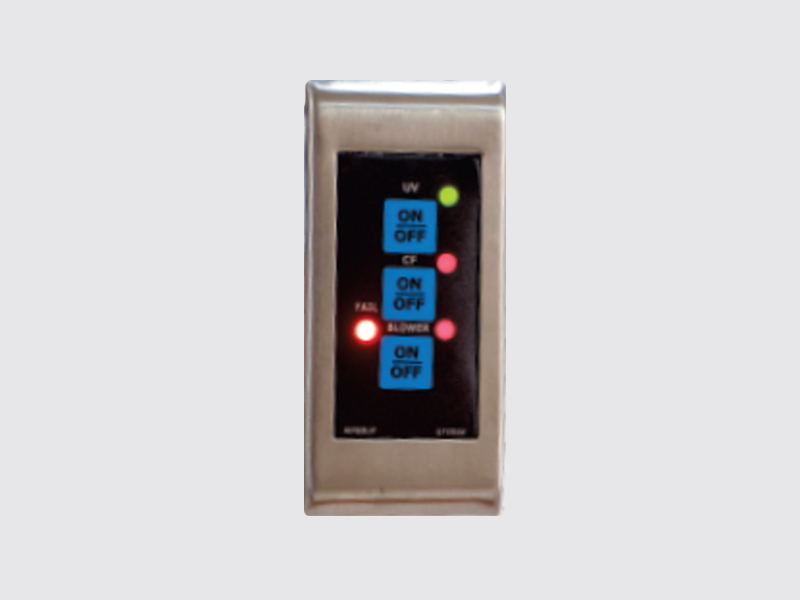

  • 3mm Diffused Bi-Color LED indication to display ON/OFF status of UV,CF, Blower.
  • Door delay time: pre programmed as per the requirement.

Specifications:

  • Mode of Operation: NC or NO.
  • Pushbutton Inputs based on Doors MAX up to 3 Doors.
  • Door Feedback Inputs based on Doors MAX up to 3 Doors.
  • Door Control Outputs based on Doors MAX up to 3 Doors.
  • LED Indications for push buttons: GO/WAIT.
  • Relay Specifications:
      Contact Material: Silver Alloy.
      Contact Rating: 230V AC / 2 A.
      No. of Operations
      Mechanical: 107.
      Electrical: 105.
      Input Voltage: 24Watt at 80-280VAC, 50Hz.
      Operating Voltage: 12V / 24V DC.

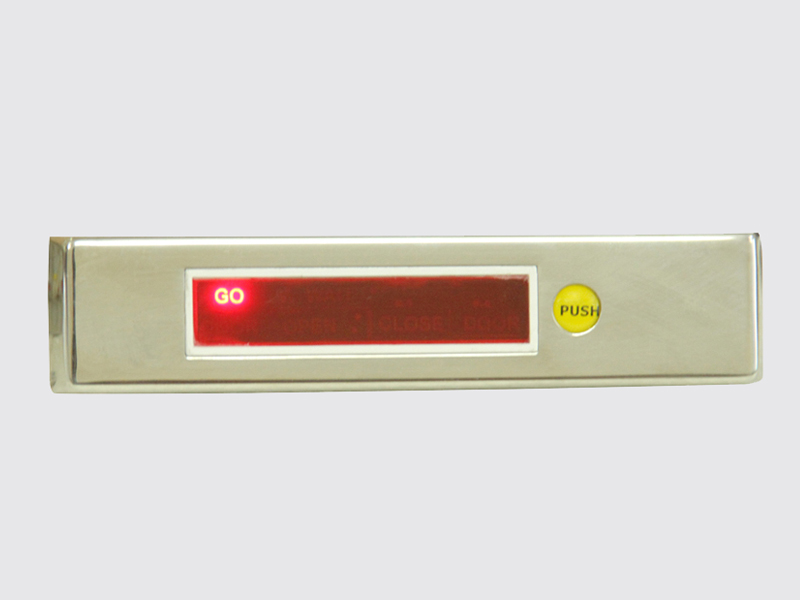

SPB105D:

Tactile push button to open Door.
Bar LED’s dimensions 8mmx21mm
No. of Bar LED’s 6 to display GO, WAIT, OPEN DOOR and CLOSE DOOR messages.
Interface with Controller DB9 Cable.
Operating Voltage: 12V/24V DC.
Audible Indication 5V buzzer
Mechanical Dimensions 40mm L x 185mm W x 30mm D.

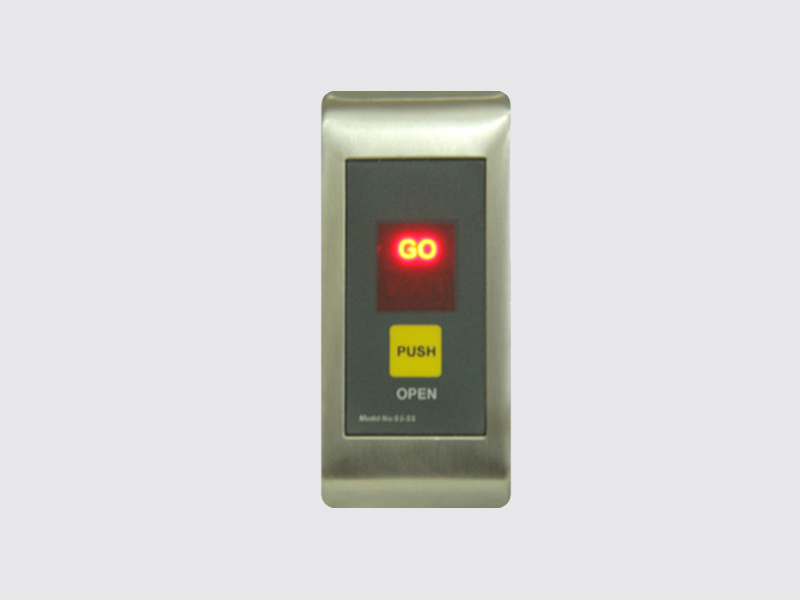

SPB105P:

Soft Touch keypad.
Bar LED’s dimensions 8mmx15mm
No. of Bar LED’s 2 to display GO, WAIT message.
Interface with Controller: 4 Core Cable.
Operating Voltage: 12V/24V DC.
Audible Indication 5V buzzer
Mechanical Dimensions 85mm L x 40mm W x 25mm H.

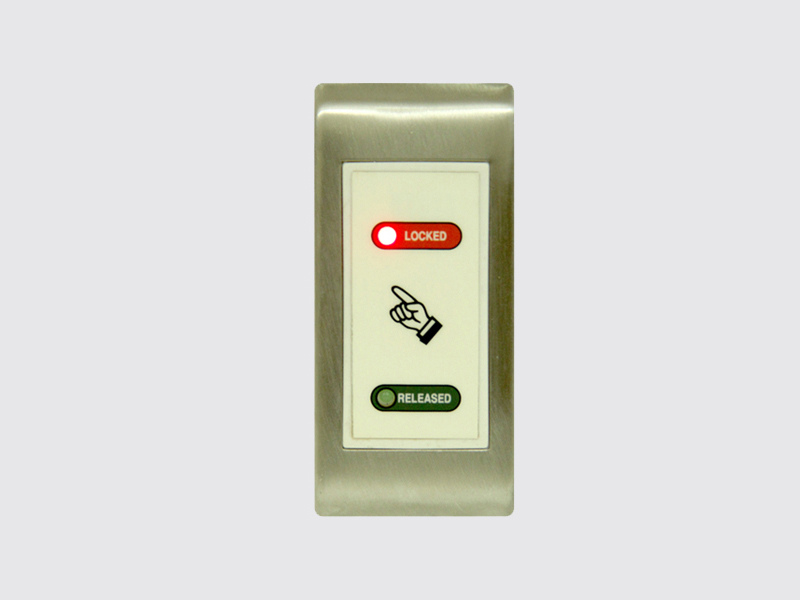

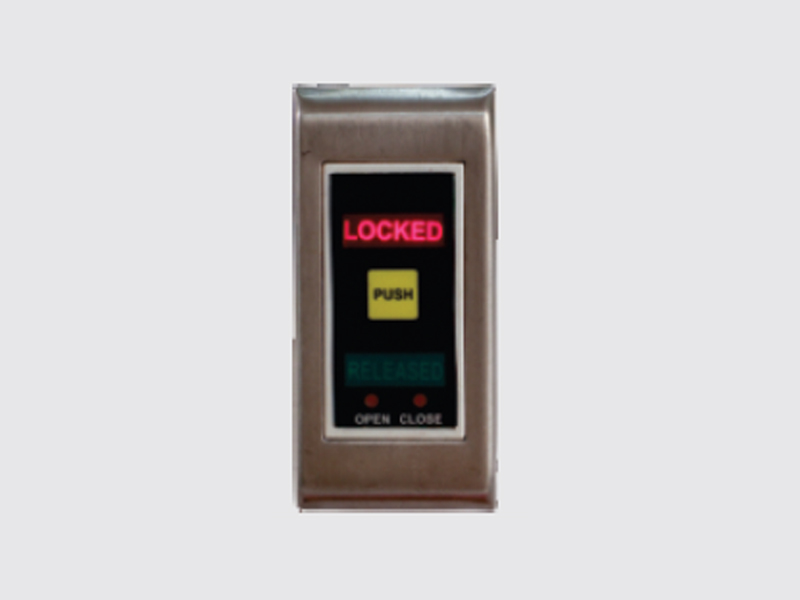

SPB105IR-P

Soft Touch keypad.
Red and Green LED indications for Locked and Released.
No. of LED’s: 2- 3mm diffused Red and Green LED’s
Interface with Controller 10Pin FRC cable (Female to Female)
Operating Voltage 12V/24V DC.
Audible Indication: 5V buzzer
Mechanical Dimensions 85mm L x 40mm W x 15mm H.

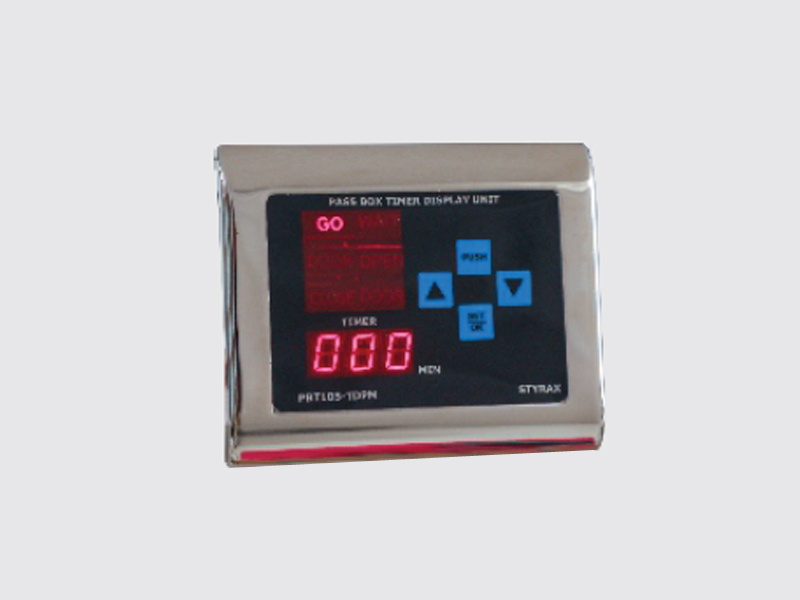

PBT105D:

4 Keys - Soft Touch keypad
Bar LED’s dimensions 8mmx15mm
No. of Bar LED’s 6 to display GO, WAIT, OPEN DOOR and CLOSE DOOR messages.
No. of 7 Segments LED's: 3 to display timer value.
Interface with Controller: DB25 Cable.
Operating Voltage: 12V/24V DC.
Audible Indication 5V buzzer
Mechanical Dimensions 110mm L x 90mm W x 30mm D.

PBB105D:

4 Keys - Soft Touch keypad
Bar LED’s dimensions 8mmx15mm
No. of Bar LED’s 6 to display GO, WAIT, OPEN DOOR and CLOSE DOOR messages.
No. bi-color LED's 3 to display UV, CF and Blower ON / OFF status.
No. of Status LED's 3mm Red LED to display blower failure status.
Interface with Controller: DB15 Cable.
Operating Voltage: 12V/24V DC.
Audible Indication 5V buzzer for door open
Audible Indication 5V buzzer for blower failure
Mechanical Dimensions 110mm L x 90mm W x 30mm D.

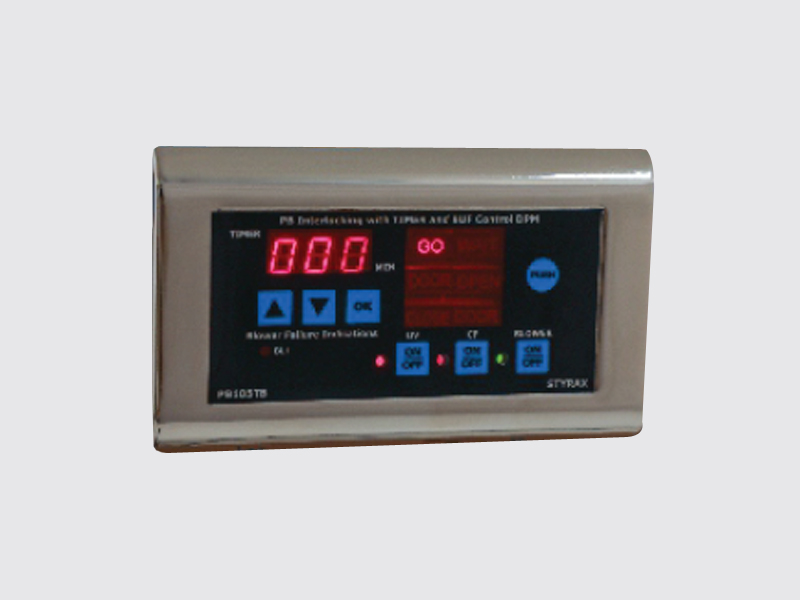

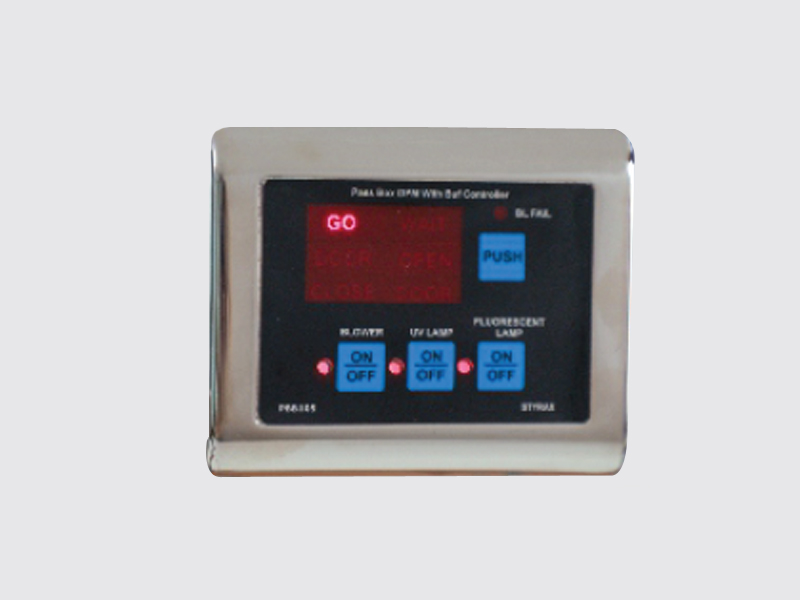

PB105D:

7 Keys - Soft Touch keypad
Bar LED’s dimensions 8mmx15mm
No. of Bar LED’s 6 to display GO, WAIT, OPEN DOOR and CLOSE DOOR messages.
No. bi-color LED's 3 to display UV, CF and Blower ON / OFF status.
No. of Status LED's 3mm Red LED to display blower failure status.
No. of 7 Segments LED's: 3 to display timer value.
Interface with Controller: DB25 Cable.
Operating Voltage: 12V/24V DC.
Audible Indication 5V buzzer for door open
Audible Indication 5V buzzer for blower failure
Mechanical Dimensions 150mm L x 90mm W x 30mm D.
Model No No. of Doors Type of Pushbutton Dimensions Type of Controller Dimensions
SPB1052S 2 SPB105P 85 x 40 x 20 SPB1052C 150 x 210 x 52
SPB1052D 2 SPB105P 85 x 40 x 20 SPB1052C 150 x 210 x 52
SPB105S 2 SPB105D 40 x 185 x30 SPB105C 230 x 310 x 55
SPB105D 2 SPB105D 40 x 185 x30 SPB105C 230 x 310 x 55
SPBIR1052 2 SPB105IR-P 85 x 40 x 15 SPBIR105C 200 x 250 x 65
SPBIR1053 3 SPB105IR-P 85 x 40 x 15 SPBIR105C 200 x 250 x 65
PBT1052S 2 PBT105D 110 x 90 x 30 PBT1052C 315 x 295 x 65
PBT1052D 2 PBT105D 110 x 90 x 30 PBT1052C 315 x 295 x 65
PBT1053S 3 PBT105D 110 x 90 x 30 PBT1053C 315 x 295 x 65
PBT1053D 3 PBT105D 110 x 90 x 30 PBT1053C 315 x 295 x 65
PBB1052 2 PBB105D 110 x 90 x 30 PBB105C 270 x 300 x 65
PBB1053 3 PBB105D 110 x 90 x 30 PBB105C 270 x 300 x 65
PB1052 2 PB105D 150 x 90 x 30 PB105C 315 x 295 x 65
PB1053 3 PB105D 150 x 90 x 30 PB105C 315 x 295 x 65
